The Amada HDS 2204 Specifications:
- Tonnage: 242 tons (220 metric tons)
- Bending length: 168 inches (4,267 mm)
- Maximum stroke: 9.8 inches (250 mm)
- Open height: 23.6 inches (600 mm)
- Throat depth: 16.5 inches (420 mm)
- Distance between side frames: 148 inches (3,759 mm)
- Amada’s proprietary AMNC 3i touchscreen control system for easy programming and operation
- Bi-directional hydraulic bending system for increased accuracy and repeatability
- Energy-saving, eco-friendly drive system reducing energy consumption and noise levels

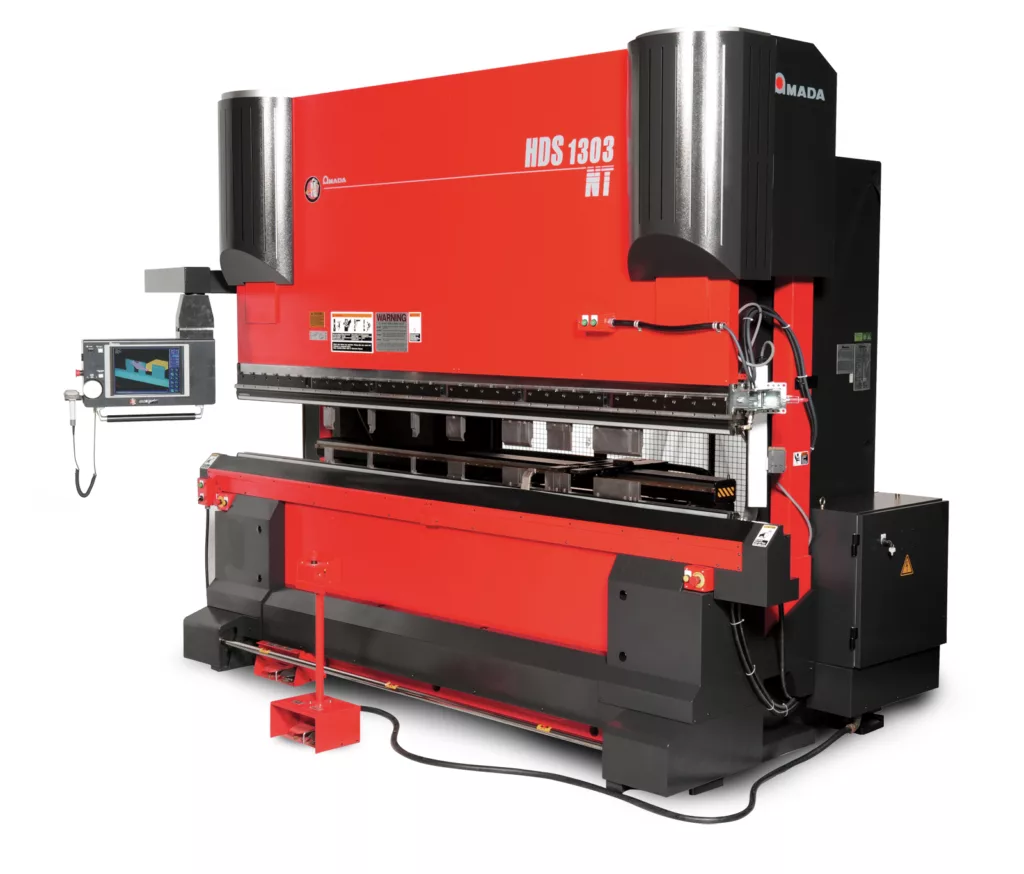

The Amada HDS 1303 Specifications:
- Tonnage: 143 tons (130 metric tons)
- Bending length: 126 inches (3,200 mm)
- Maximum stroke: 7.87 inches (200 mm)
- Open height: 18.5 inches (470 mm)
- Throat depth: 16.5 inches (420 mm)
- Distance between side frames: 106 inches (2,700 mm)
- Amada’s proprietary AMNC 3i touchscreen control system for easy programming and operation
- Bi-directional hydraulic bending system for increased accuracy and repeatability
- Energy-saving, eco-friendly drive system reducing energy consumption and noise levels

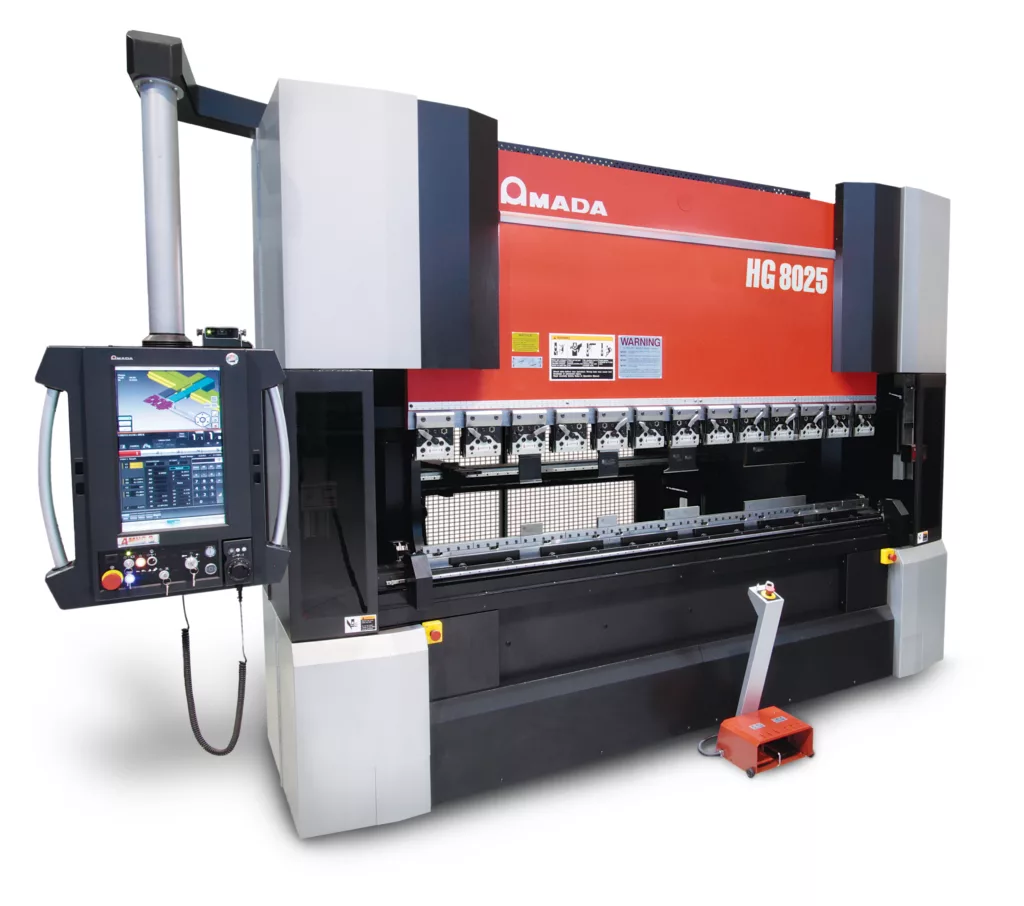

The Amada HG 8025 Specifications:
- Maximum Pressing Force: 88 tons (80 metric tons)
- Maximum Bending Length: 98.4 inches (2,500mm)
- Distance Between Uprights: 86.6 inches (2,200mm)
- Stroke Length: 7.9 inches (200mm)
- Open Height: 19.7 inches (500mm)
- Throat Depth: 16.5 inches (420mm)
- Bending Speed: 0.39 – 0.47 inches/sec (10 – 12mm/sec)
- Control System: AMNC 3i Control
- Precision: +/- 0.0004 inches (0.01mm)
Discover the difference our precision metal forming services can make for your next project. With our skilled team and state-of-the-art press brakes, we’re ready to exceed your expectations. Don’t wait request a quote today and let us ensure your parts are accurate and delivered on time!
